• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 145435

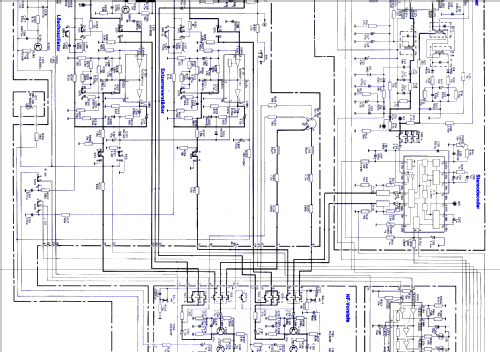

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type)

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: CR30 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• 4-Band-Stereo-Radio-Recorder mit 2 x 3 Watt Musikleistung. Stereo-Wide-Schaltung.
  7 IC´s.

• Price in first year of sale
• 398.00 DM

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
