• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1981 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106408

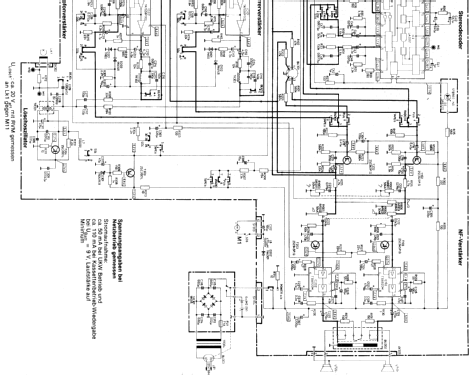

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 6 × 1,5 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

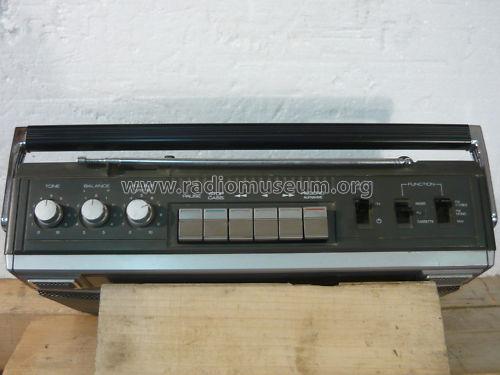

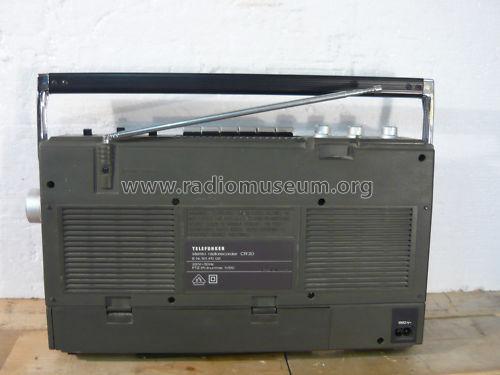

• Model: Stereo Radiorecorder CR20 - Telefunken Deutschland TFK,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 400 x 275 x 100 mm / 15.7 x 10.8 x 3.9 inch

• Notes

• FM-/Kassette-Stereo; 2 Mikrofone. 2 x 2 Watt Ausgangsleistung.

  Made in Taiwan.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 298.00 DM

• Author
• Model page created by Jörg Kulbe. See "Data change" for further contributors.
