• Year
  • 1969–1972
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 27681

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 38
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org

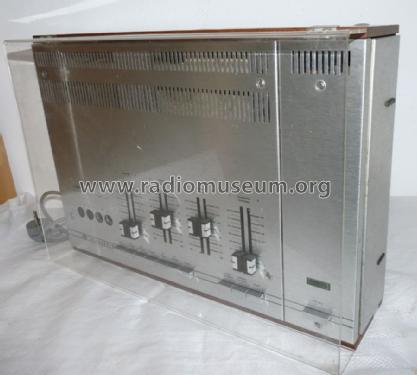

  • Model: acusta V250 hifi - Telefunken Deutschland TFK,
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 470 x 130 x 330 mm / 18.5 x 5.1 x 13 inch
  • Notes
  • HiFi-Stereo-NF-Verstärker mit 2 Endstufen je 35 W (Sinus).
    Zusammen mit dem Tuner T250 hifi, dem Plattenspieler W250 und den Lautsprecherboxen L250 wurde das Gerät als HiFi-Stereo-Anlage acusta hifi verkauft.
  • External source of data
  • erb
