Elna Navcom RT 408 DR

• Country
• Germany

• Manufacturer / Brand
• UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»

• Year
• 1978

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 262337

• • alternative name: Unknown, Custom Built

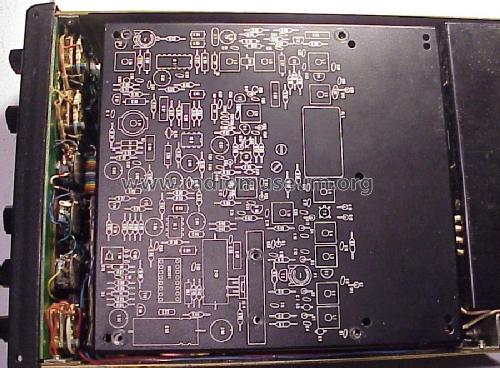

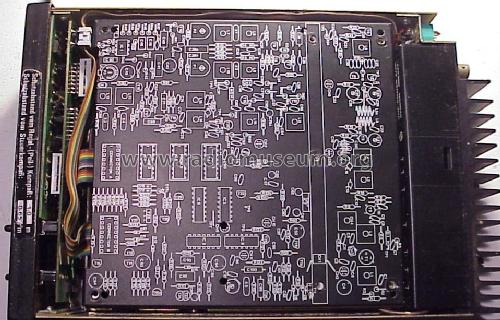

• Picture

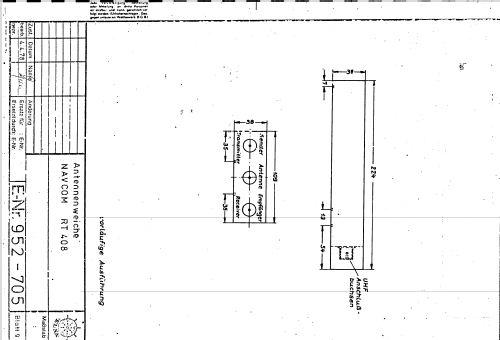

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: Elna Navcom RT 408 DR - UNBEKANNTE FIRMA D / A / CH -

• Notes

• 1 Watt bzw. 25 Watt HF Ausgangsleistung umschaltbar.

  FTZ-Nr. C35 02108 (für Rheinfunk)

  Siehe auch RT 408 D

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
