- Country
- Germany
- Manufacturer / Brand
- Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 134654
-
- alternative name: Württemb. Radio-Ges.mbH; Stuttgart
Q: Wega, Service-Unterlagen
Q: Wega, Service-Unterlagen
Q: Wega, Produkt-Katalog '78

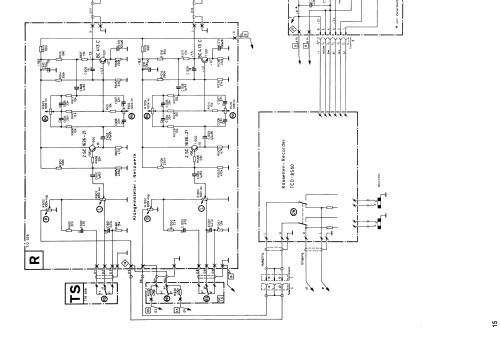

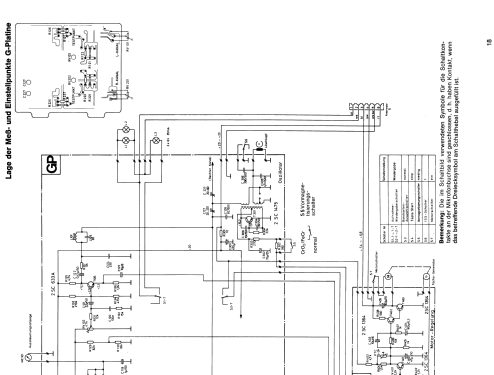

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 33
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Other Combination - see Notes
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 50 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

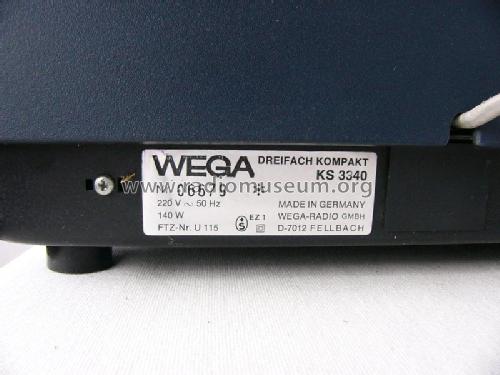

- Model: KS3340 - Wega, Württembergische Radio-
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 800 x 173 x 400 mm / 31.5 x 6.8 x 15.7 inch
- Notes
-

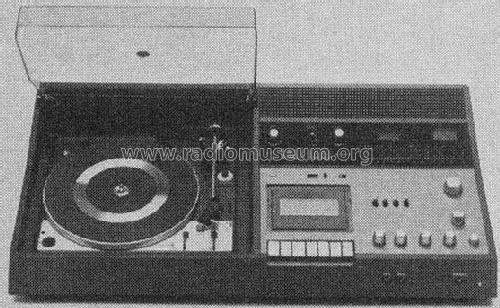

Wega HiFi-Stereo-Kombination KS 3340.
Cs: 2; 2 Power-Packs.
Ausgangsleistung: 2× 25 W (Sinus);
Frequenzumfang: 20···20000 Hz;
Cassetten-Recorder = Sony, Frequenzumfang: 40···13000 Hz (mit FeCr-Band).Phono-Chassis = Dual 1225 mit Magnetsystem Shure M75-D;
- Price in first year of sale
- 1,600.00 DM
- Source of data
- Handbuch VDRG 1976/1977
- Mentioned in
- -- Original prospect or advert (Wega Produkt-Katalog '78)
- Author
- Model page created by Bernd P. Kieck. See "Data change" for further contributors.
