M75D

M75D; Shure; Chicago, (ID = 1594603) Microphone/PU M75D; Shure; Chicago, (ID = 1594604) Microphone/PU
M75D; Shure; Chicago, (ID = 1594606) Microphone/PU M75D; Shure; Chicago, (ID = 1561655) Microphone/PU
M75D; Shure; Chicago, (ID = 1560248) Microphone/PU M75D; Shure; Chicago, (ID = 2189611) Microphone/PU
M75D; Shure; Chicago, (ID = 2380331) Microphone/PU
Use red slider bar for more.

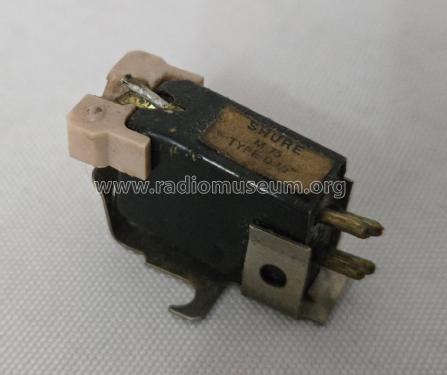

M75D; Shure; Chicago, (ID = 1594603) Microphone/PU
Shure; Chicago,: M75D [Microphone/PU] ID = 1594603 933x855
Select picture or schematic to display from thumbnails on the right and click for download.
For model M75D, Shure; Chicago, Evanston, Niles (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Shure; Chicago, Evanston, Niles (IL)
Year: 1968 ?? Category: Microphone or Pick-up element
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: M75D - Shure; Chicago, Evanston,
Material Various materials
Shape Miscellaneous shapes - described under notes.
Notes

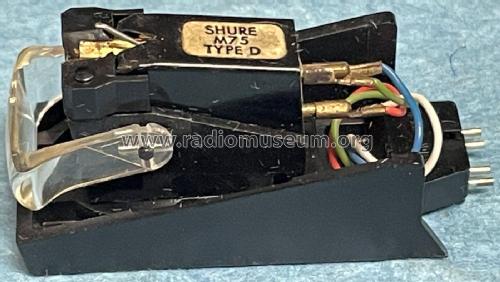

Magnet - Tonabnehmer für diverse Plattenspieler. ( Das Bild zeigt z.B. einen M 75 D, der für einen Dual CS 1249 hergerichtet wurde. Dieser  " Tonarmschlitten" trägt die Bezeichnung   " TK 220 ".)

Net weight (2.2 lb = 1 kg) 0.006 kg / 0 lb 0.2 oz (0.013 lb)
Source of data -- Original-techn. papers.

Model page created by Ottmar Lauth. See "Data change" for further contributors.
