955 Ch = 8k ; Admiral brand (ID = 1005309) Radio
Admiral brand: 955 Ch = 8k [Radio] ID = 1005309 933x908
Select picture or schematic to display from thumbnails on the right and click for download.
For model 955 Ch = 8k (8 K), Admiral (brand) Continental Radio & Television Co.; Chicago, IL:

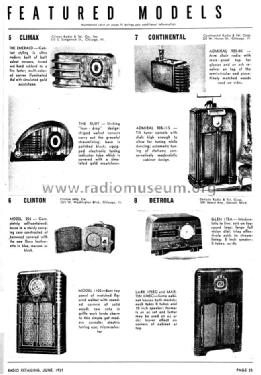

Scanned from the Radio Retailing June 1937.

Country:  United States of America (USA)
Manufacturer / Brand:  Admiral (brand) Continental Radio & Television Co.; Chicago, IL
alternative name

Continental Radio & TV
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A7 6D6 76 75 76 42 42 80
Main principle Super-Heterodyne (Super in general); ZF/IF 456 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 955 Ch = 8k - Admiral brand Continental
Material Wooden case
Shape Console: Chairside Radio.
Notes Streamline semicircular front with ashtray.
Collectors' prices
Source of data The Complete Price Guide to Antique Radios: Pre-War Consoles
Mentioned in Pre-War Consoles
Literature/Schematics (1) Rider's Perpetual, Volume 8 = 1937 and before
Literature/Schematics (2) Radio Retailing (Radio & Television R.) (June 1937.)

Model page created by Rainer Sluga. See "Data change" for further contributors.
