Inconnu - Unknown 3

Inconnu - Unknown 3; Bell Telephone (ID = 1876739) Radio Inconnu - Unknown 3; Bell Telephone (ID = 1876741) Radio

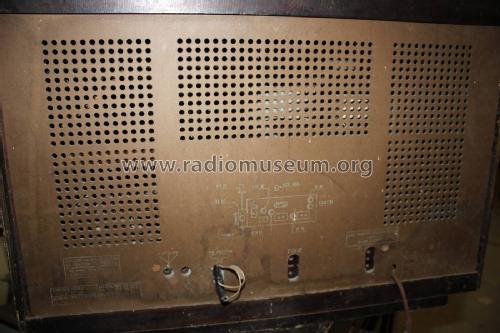

Inconnu - Unknown 3; Bell Telephone (ID = 1876743) Radio
Use red slider bar for more.
Inconnu - Unknown 3; Bell Telephone (ID = 1876739) Radio
Bell Telephone: Inconnu - Unknown 3 [Radio] ID = 1876739 1400x1049
Select picture or schematic to display from thumbnails on the right and click for download.
For model Inconnu - Unknown 3, Bell Telephone Manufacturing (Radiobell, Standard); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Manufacturing (Radiobell, Standard); Antwerp
Brand

Radiobell
Year: 1954 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECC81 ECH81 EF93 EABC80 EM85 EL41 EZ80
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Inconnu - Unknown 3 - Bell Telephone Manufacturing
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 581 x 395 x 220 mm / 22.9 x 15.6 x 8.7 inch
Notes

Oval Loudspeaker 24 x 16 cm.

4 band radio receiver: LW, BC, SW (30-53 m), FM (88-101 MHz).





Model page created by Museum: Radiomuseum Olen. See "Data change" for further contributors.
