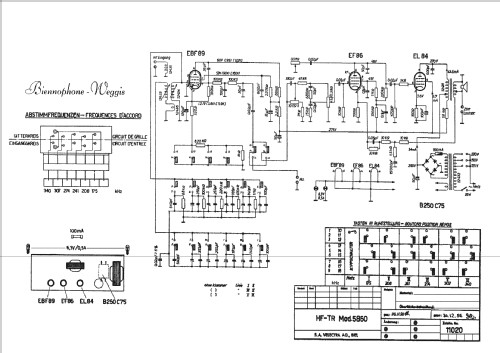

Weggis 5860; Biennophone; Marke (ID = 702552) Radio
Weggis 5860; Biennophone; Marke (ID = 233654) Radio Weggis 5860; Biennophone; Marke (ID = 233655) Radio

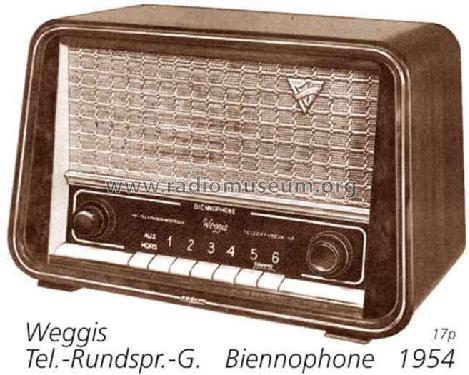

Weggis 5860; Biennophone; Marke (ID = 702556) Radio Weggis 5860; Biennophone; Marke (ID = 1448) Radio
Weggis 5860; Biennophone; Marke (ID = 702554) Radio Weggis 5860; Biennophone; Marke (ID = 702555) Radio
Weggis 5860; Biennophone; Marke (ID = 702557) Radio Weggis 5860; Biennophone; Marke (ID = 702558) Radio
Weggis 5860; Biennophone; Marke (ID = 702559) Radio Weggis 5860; Biennophone; Marke (ID = 702560) Radio
Use red slider bar for more.
Weggis 5860; Biennophone; Marke (ID = 233654) Radio
Biennophone; Marke: Weggis 5860 [Radio] ID = 233654 883x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Weggis 5860, Biennophone; (Marke)

Country:  Switzerland
Manufacturer / Brand:  Biennophone; (Marke)
alternative name

Sport AG Biel || Velectra AG
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: EBF89 EF86 EL84
Semiconductors (the count is only for transistors) B250C75
Main principle TRF with diode detector; 2 AF stage(s)
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 125; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Weggis 5860 - Biennophone; Marke
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 410 x 265 x 215 mm / 16.1 x 10.4 x 8.5 inch
Notes HF-TR . Dial lamps: 2x 8024D (6,3V/0,3A)
Net weight (2.2 lb = 1 kg) 5.7 kg / 12 lb 8.9 oz (12.555 lb)
Price in first year of sale 325.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Biennophone; (Marke)
Here you find 492 models, 267 with images and 290 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
