• Country
• Sweden

• Manufacturer / Brand
• Stern & Stern (Concerton / Conserton), S&S; Stockholm

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 140624

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH21 ECH21 EBL21 AZ1 EM4

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 135; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

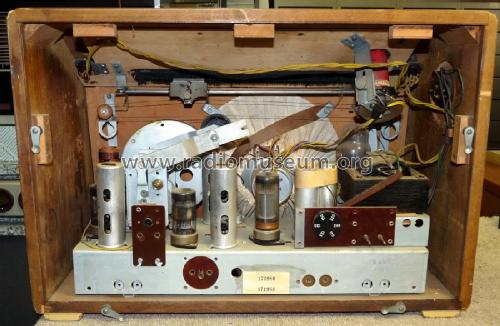

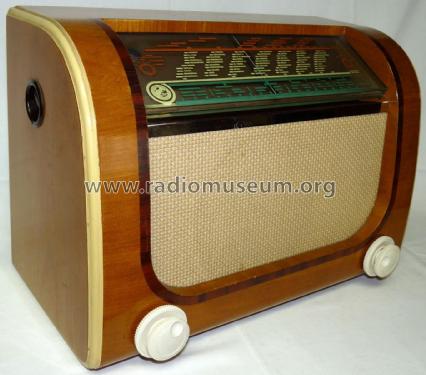

• Model: Concerton V 458 - Stern & Stern Concerton /

• Shape
• Tablemodel, with any shape - general.

• Price in first year of sale
• 343.00 SEK

• Source of data
• - - Manufacturers Literature
