For model 817 Super 8 (Super Eight), Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1937/1938 perfect model Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6A8G 6K6G 6U7G 6U7G 6Q7G 6K6G 6K6G 5Y3G
Principle Super-Heterodyne (Super in general); ZF/IF 456 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 5.5 W (unknown quality)
from Radiomuseum.org Model: 817 Super 8 - Crosley Radio Corp.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 16.875 x 10.25 x 7.375 inch / 429 x 260 x 187 mm
Notes

The Crosley model 817 Super 8 "Crosley Super Eight" is a three band, AC powered superheterodyne. It has push-pull pentode output, automatic volume control, and an 8" electro dynamic speaker. The bentwood style cabinet has front and side panels of highly figured quarter stripe walnut, trimmed with contrasting stump walnut bands and maple inlays. Two solid bronze, highly polished gold-finish bars traverse the grille. In 1938 the price dropped from 44.95 to 39.95.
The ad "The standout values in radio for 1938" from Fall 1937 shows the following models: Console 1117 early and late, console "Dynatrol Eleven" 1127, chairside model "Dynatrol Six" 617 and low profile table radio model 817, all with 4 knobs. Table model Super Six 637 and Crosley Fiver (DeLuxe) with 3 knobs, the Fiver Roamio (A157) with two knobs and three versions of a "Fiver" Chairside model: 567-M, 567-N and 567-P. Models 1127 and 617 have "Dynatral Electric Tuning" with push buttons.

Price in first year of sale 44.95 $
Collectors' prices
External source of data Ernst Erb
Source of data Collector's Guide to AR4.Ed.,Bunis, tube
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Guide to old Radios,Johnson 1989
Literature/Schematics (1) Radio Retailing (R & Television R.) (October 1937.)

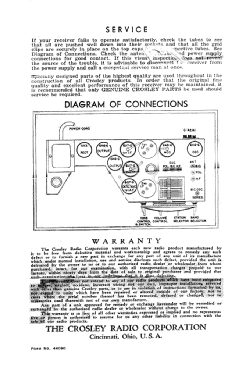

Literature/Schematics (3) Crosley Folder No. 1918, 1938 for Season 1937/38.
