For model 1117 Late, Crosley Radio Corp.; Cincinnati (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6A8G 6U7G 6U7G 6C5G 6G5 6K6G 6K5G 6C5G 6K6G 6K6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out 8 W (unknown quality)
from Radiomuseum.org Model: 1117 [Late] - Crosley Radio Corp.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 24.25 x 40 x 13 inch / 616 x 1016 x 330 mm
Notes

The Crosley model 1117 with 3 bands receives 525 to 22,000 kHz. There is a technical change after serial number 1343902, therefore we differ for "erly" and "late".
The ad "The standout values in radio for 1938" from Fall 1937 shows the following models: Console 1117 early and late, console "Dynatrol Eleven" 1127, chairside model "Dynatrol Six" 617 and low profile table radio model 817, all with 4 knobs. Table model Super Six 637 and Crosley Fiver (DeLuxe) with 3 knobs, the Fiver Roamio (A157) with two knobs and three versions of a "Fiver" Chairside model: 567-M, 567-N and 567-P. Models 1127 and 617 have "Dynatral Electric Tuning" with push buttons.

Price in first year of sale 69.95 $
External source of data Ernst Erb
Source of data Pre-War Consoles

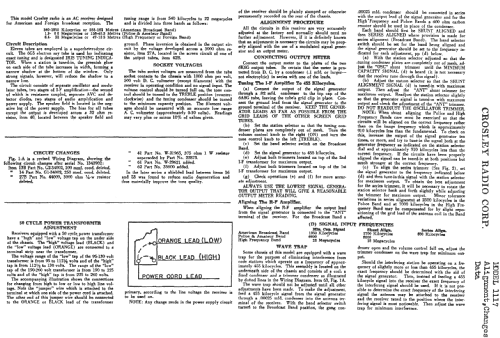

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
