For model Fiver Chairside 567-N brown wrinkle, Crosley Radio Corp.; Cincinnati (OH):
Radio Retailing aug 1937

Country:  United States of America (USA)
Manufacturer / Brand:  Crosley Radio Corp.; Cincinnati (OH)
Year: 1937/1938 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6U7G 6Q7G 6K6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Fiver Chairside 567-N [brown wrinkle] - Crosley Radio Corp.;
Material Metal case
Shape Console: Chairside Radio.
Dimensions (WHD) 12.25 x 18.5 x 10.25 inch / 311 x 470 x 260 mm
Notes

Brown wrinkle finish with Chinese red bakelite top and red feet. See the different cabinets: "Chairside Fiver" in black wrinkle, brown wrinkle and walnut.
The ad "The standout values in radio for 1938" from Fall 1937 shows the following models: Console 1117 early and late, console "Dynatrol Eleven" 1127, chairside model "Dynatrol Six" 617 and low profile table radio model 817, all with 4 knobs. Table model Super Six 637 and Crosley Fiver (DeLuxe) with 3 knobs, the Fiver Roamio (A157) with two knobs and three versions of a "Fiver" Chairside model. Models 1127 and 617 have "Dynatral Electric Tuning" with push buttons.

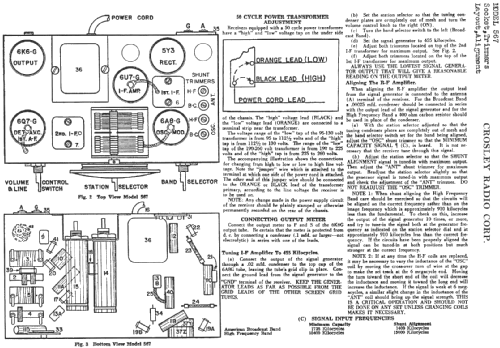

Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Guide to Old Radios
Literature/Schematics (3) Crosley Folder No. 1918, 1938 for Season 1937/38.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
