• Country
• United States of America (USA)

• Manufacturer / Brand
• Emerson Radio & Phonograph Corp.; New York, NY

• Year
• 1950

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 104843

• • alternative name: Emerson Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6AG5 6J6 6AG5 6AG5 6AU6 6AL5 6AU6 12AU7 6AU6 6AU6 6T8 6V6GT 6SN7GT 6AL5 6SN7GT 6SN7GT 12AU7 6K6GT 6BG6G 1B3GT 6W4GT 5U4G 10BP4

• Main principle
• Superhet with RF-stage; ZF/IF 25000 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org

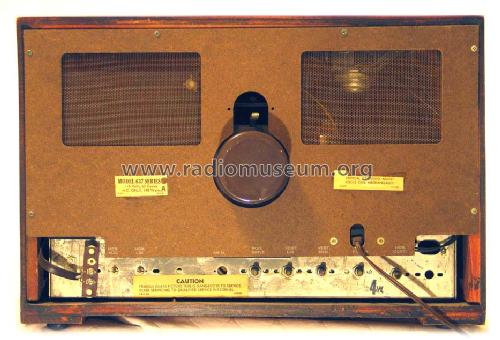

• Model: 637 Ch= 120110B - Emerson Radio & Phonograph

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 20 x 13.5 x 20 inch / 508 x 343 x 508 mm

• Notes
• 10" b/w CRT, US standard VHF tuner, channels 2 thru 13.
  Cabinet in dark mahogany.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Date 6-50, Set 97, Folder 4)

• Literature/Schematics (2)
• - - Manufacturers Literature

• Author
• Model page created by Thomas Albrecht. See "Data change" for further contributors.
