• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 119397
    • alternative name: Grundig Portugal || Grundig USA / Lextronix

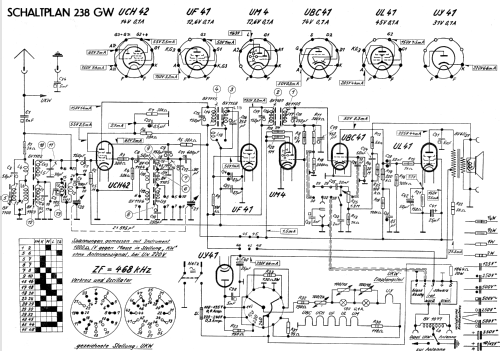

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Wave bands
  • Ready for FM, has Broadcast, Long Wave, Short wave.
  • Power type and voltage
  • AC/DC-set / 110; 125; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org
  • Model: 238GW - Grundig Radio-Vertrieb, RVF,
  • Mentioned in
  • -- Schematic
  • Author
  • Model page created by Franz-Josef Haffner. See "Data change" for further contributors.
