SRX-30

SRX-30; Lowe Electronics Ltd (ID = 2064030) Amateur-R SRX-30; Lowe Electronics Ltd (ID = 2064032) Amateur-R
Use red slider bar for more.
SRX-30; Lowe Electronics Ltd (ID = 2064030) Amateur-R

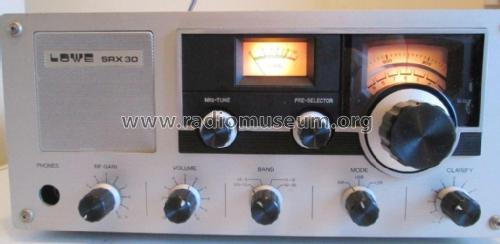

Lowe Electronics Ltd: SRX-30 [Amateur-R] ID = 2064030 1024x500
Select picture or schematic to display from thumbnails on the right and click for download.
For model SRX-30, Lowe Electronics Ltd.; Matlock:
Ebay UK item number 152390698808 seller johnnyscots

Country:  Great Britain (UK)
Manufacturer / Brand:  Lowe Electronics Ltd.; Matlock
Year: 1979/1980 ? Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 2 W (unknown quality)
from Radiomuseum.org Model: SRX-30 - Lowe Electronics Ltd.; Matlock
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 325 x 140 x 230 mm / 12.8 x 5.5 x 9.1 inch
Notes Lowe Communications Receiver SRX-30.
Coverage 500 kHz - 30 MHz, AM, USB/LSB; Wadley loop system, preselector.
Imported set, sold under Lowe label, also sold as Century 21, similar to Standard SR-C6500 and Drake SSR-1.
Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 178.00 GBP
Source of data Shortwave Receivers - Past & Present (3rd ed.)

Model page created by Martin Bösch. See "Data change" for further contributors.
