SSR-1

SSR-1; Drake, R.L. (ID = 108354) Amateur-R

SSR-1; Drake, R.L. (ID = 108355) Amateur-R
SSR-1; Drake, R.L. (ID = 72871) Amateur-R SSR-1; Drake, R.L. (ID = 402295) Amateur-R
SSR-1; Drake, R.L. (ID = 482607) Amateur-R SSR-1; Drake, R.L. (ID = 1847624) Amateur-R
SSR-1; Drake, R.L. (ID = 1847625) Amateur-R SSR-1; Drake, R.L. (ID = 1847626) Amateur-R
Use red slider bar for more.
SSR-1; Drake, R.L. (ID = 72871) Amateur-R
Drake, R.L.: SSR-1 [Amateur-R] ID = 72871 933x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model SSR-1, Drake, R.L. Miamisburg, Ohio

Country:  United States of America (USA)
Manufacturer / Brand:  Drake, R.L. Miamisburg, Ohio
Year: 1976–1978 Category: Amateur-Receiver (amateur bands, may include broadcast bands)
Semiconductors (the count is only for transistors) 17:
Main principle Superhet, double/triple conversion; ZF/IF 44500/455 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 117; 234 / 8×1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8.2 cm = 3.2 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: SSR-1 - Drake, R.L. Miamisburg, Ohio
Material Metal case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 13 x 5.5 x 11 inch / 330 x 140 x 279 mm
Notes ICs: 2

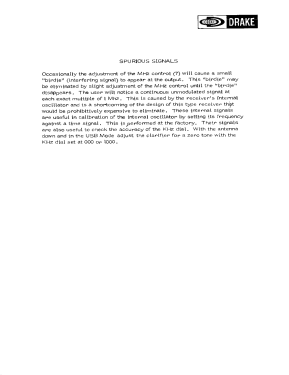

Continuous coverage 500 kHz - 30 MHz, AM, USB/LSB, preselector. Triple Conversion Wadley-Loop. 1. IF 44500–45500 kHz (1 MHz ±150 kHz bandwith), 2. IF 2000-3000 kHz, tuned Stage, 3. IF 455 kHz. External power supply (12–14 V) possible.
Durchgehender Frequenzbereich von 500 kHz – 30 MHz; AM, SSB. Dreifachsuper, 1. ZF breitbandig 44500–45500 kHz ±150 kHz, 2. ZF 2000-3000 kHz, abgestimmt, 3. ZF 455 kHz. Externe Stromversorgung (12–14 V) möglich.
Net weight (2.2 lb = 1 kg) 6.4 kg / 14 lb 1.6 oz (14.097 lb)
Price in first year of sale 980.00 DM
Collectors' prices
Source of data Shortwave Receivers - Past & Present (3rd ed.)
Mentioned in Hannes Bauer-Katalog, 1976

Model page created by Martin Bösch. See "Data change" for further contributors.
