Diplomat 3997W Stereo
Luxor Radio AB; Motala
- Country
- Sweden
- Manufacturer / Brand
- Luxor Radio AB; Motala
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 149346
-
- alternative name: Luxorita - voir Luxor Radio AB Suède (Sweden)

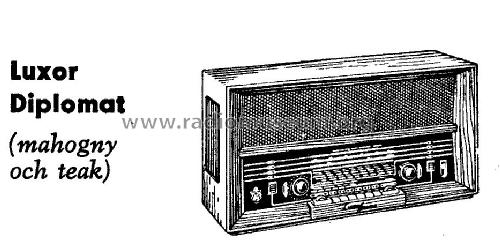

Original Prospekt
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Number of Transistors
- Semiconductors
- B250C125
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 150; 220; 250 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Diplomat 3997W Stereo - Luxor Radio AB; Motala
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 320 x 230 mm / 25.6 x 12.6 x 9.1 inch
- Notes
- Frequency bands: LW: 690-2000m, BC: 185-571m, SW1: 19.4-51.3m, SW2: 61.2-217.4m, FM: 87-108MHz. Cabinet made of teak and mahogany. 1 Selenium rectifier. Weight is incl box.
- Net weight (2.2 lb = 1 kg)
- 17 kg / 37 lb 7.1 oz (37.445 lb)
- Price in first year of sale
- 695.00 SEK
- Literature/Schematics (1)
- "Luxor-programmet No5/1959"
- Author
- Model page created by Jörgen Svensson. See "Data change" for further contributors.
