• Country
• United States of America (USA)

• Manufacturer / Brand
• Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN

• Year
• 1951 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 46309

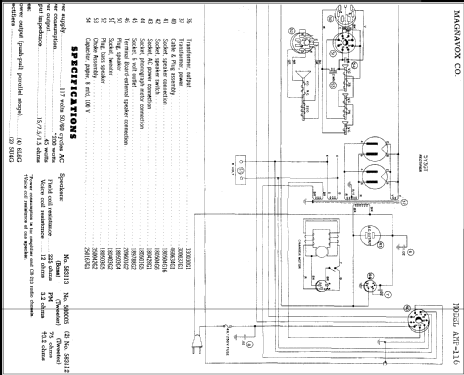

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6V6GT 6V6GT 6V6GT 6V6GT 5Y3GT 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Metal case

• from Radiomuseum.org
• Model: AMP-116 - Magnavox Co., Commercial

• Shape
• Chassis only or for «building in»

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 19 = 1949 and before

• Other Models

• Here you find 1096 models, 527 with images and 799 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Magnavox Co., Commercial Wireless and Development Co.; San Francisco, later Fort Waye, IN
