PRC-6 RT-196 / PRC-6

PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774352) Military

PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774353) Military

PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774356) Military
PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774350) Military PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774351) Military
PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 780584) Military PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946345) Military
PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946347) Military PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946349) Military
PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946351) Military PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946353) Military
PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946354) Military PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 946355) Military
Use red slider bar for more.

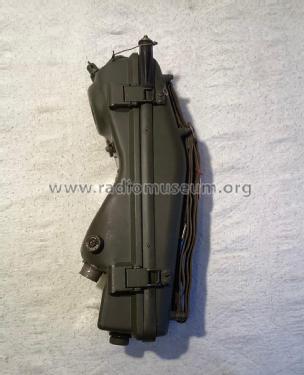

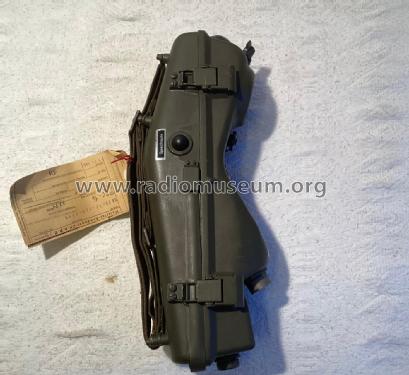

PRC-6 RT-196 / PRC-6; MILITARY U.S. (ID = 774350) Military
MILITARY U.S.: PRC-6 RT-196 / PRC-6 [Military] ID = 774350 623x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model PRC-6 RT-196 / PRC-6, MILITARY U.S. (different makers for same model)

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1951–1955 Type: Military Equipment
Valves / Tubes 13: 5678 2G21 5672 5676 3B4
Principle Transceiver; ZF/IF 4300 kHz; 1 AF stage(s)
Tuned circuits 8 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 1,5 & 45 & 90 Volt
Loudspeaker - only for Earphone! / Ø 3 cm = 1.2 inch
Power out 0.25 W (unknown quality)
from Radiomuseum.org Model: PRC-6 RT-196 / PRC-6 - MILITARY U.S. different makers
Material Metal case
Shape Portable set > 8 inch (usable without mains)
Dimensions (WHD) 108 x 375 x 121 mm / 4.3 x 14.8 x 4.8 inch
Notes

RT-196/PRC-6 is a miniaturized portable handy-talkie for FM-communication over a distance of about 1 mile max.
The working frequency is crystal controlled. One of 43 possible channels can be used in the 47-55,4 MHz range by fitting one out of 43 crystals, type CR-23/U. Channel spacing is 200 kHz. Modulation FM (F3).
The internal multi-voltage battery BA-270 feeds the unit.

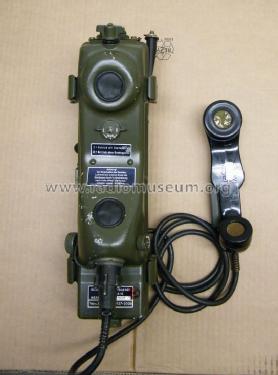

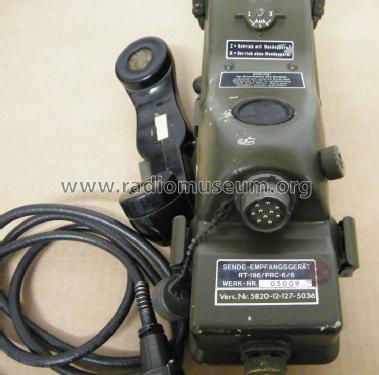

The antenna is a 51 cm flat whip with a 50 ohm BNC connector. Telephone and microphone can be switched from internal to a handset H-33(*)/PT. A volume-control is present.
All tubes, exept 3B4, are SQ-subminiature B5. Each tubecode listed only once.
The net weight given is inclusive the battery and handset.

With 3.2 kg this set is nowadays considered a "boat-anchor portophone".
Hams could have used surplus sets in the 6 meter band.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Collectors' prices
Literature/Schematics (1) -- Original-techn. papers. (TM11-296 1951 / TM11-4069 1952)

Model page created by Jan Terranea. See "Data change" for further contributors.
