Receiver-Transmitter RT-68/GRC

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 162200) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 162201) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 162202) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 162203) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 162204) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160006) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160005) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160004) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 292083) TRX

Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 292090) TRX
Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 777507) TRX Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160001) TRX
Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160002) TRX Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 160003) TRX
Use red slider bar for more.
Receiver-Transmitter RT-68/GRC; MILITARY U.S. (ID = 777507) TRX

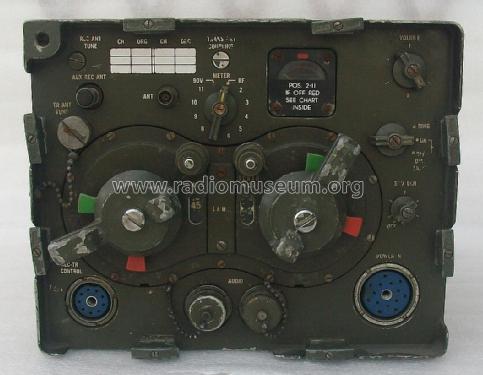

MILITARY U.S.: Receiver-Transmitter RT-68/GRC [TRX] ID = 777507 933x505
Select picture or schematic to display from thumbnails on the right and click for download.
For model Receiver-Transmitter RT-68/GRC, MILITARY U.S. (different makers for same model):
Siemens version

Country:  United States of America (USA)
Manufacturer / Brand:  MILITARY U.S. (different makers for same model)
Year: 1957 ? Type: Transmitter & Receiver (TRX not Amateur)
Valves / Tubes 27: DF904 DAF91 DA90 DF92 DK91 1AE4 DL95 DL93 DCC90 DL98 EF95 2E24
Principle Superhet, double/triple conversion; 2 AF stage(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12/24 Volt
Loudspeaker - For headphones or amp.
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Receiver-Transmitter RT-68/GRC - MILITARY U.S. different makers
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 285 x 230 x 330 mm / 11.2 x 9.1 x 13 inch
Notes RT-68/GRC tranceiver for mobile purposes, part of AN/GRC-7 and AN/GRC-8 radio sets. 38-55 MHz continous or presets in 100 kHz steps, FM. Output power 2 watts (LO) or 15 watts (HI). Needs power supply PP-109 or PP-112. Mainly used in tanks like M88. Different manufacturers, also made in Germany by SEL. Tubes only one times listed.
Net weight (2.2 lb = 1 kg) 19.1 kg / 42 lb 1.1 oz (42.07 lb)
Collectors' prices
Mentioned in -- Original-techn. papers. (TM11-611)

Model page created by Arthur Rudolph. See "Data change" for further contributors.
