17TA141A/00 Ch= C2

Philips - Österreich

  • Year
  • 1955/1956
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 95455

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 21
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 17TA141A/00 Ch= C2 - Philips - Österreich
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Empfangsbereich: Band I + III, Kanal 2a - 4, 5 - 12.

    Parallelgerät zum Hornyphon WT1724A/00.

  • Price in first year of sale
  • 7,100.00 ATS
  • Literature/Schematics (1)

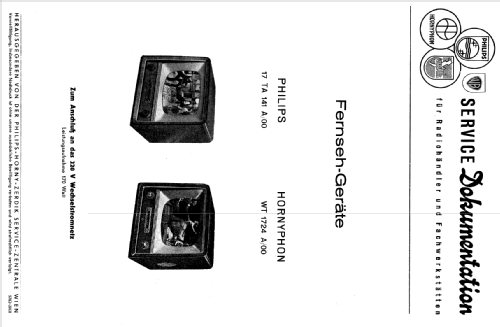

  • -- Original-techn. papers. (Philips Verkaufsmitteilungen, März 1957)
  • Author
  • Model page created by Wolfgang Bauer. See "Data change" for further contributors.
