• Year
  • 1939/1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7254
    • Brand: Deutsche Philips-Ges.

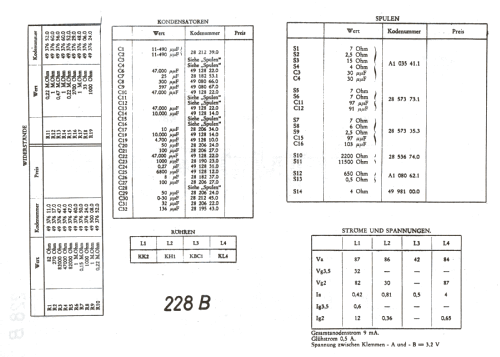

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 228B - Philips Radios - Deutschland
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 310 x 320 x 210 mm / 12.2 x 12.6 x 8.3 inch
  • Notes
  • Ch=225B
  • Net weight (2.2 lb = 1 kg)
  • 7.4 kg / 16 lb 4.8 oz (16.3 lb)
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
