• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1967 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 98900

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details

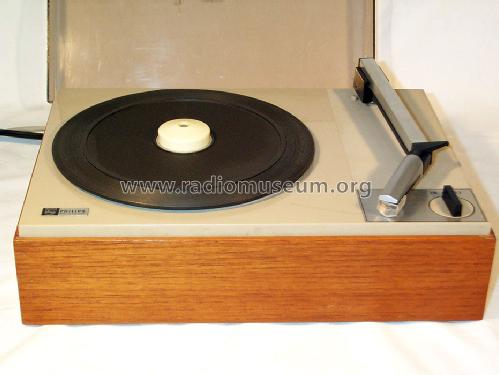

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22GA632 /01T - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 315 x 115 x 230 mm / 12.4 x 4.5 x 9.1 inch

• Notes
• Geschwindigkeiten 33/45/78 UpM, Stecksystem Kristall 22GP204 (auch andere verwendbar).

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Stefan Gockeln. See "Data change" for further contributors.
