Saturn 851 Stereo B8D51A

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949342) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949343) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 102510) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949346) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949347) Radio

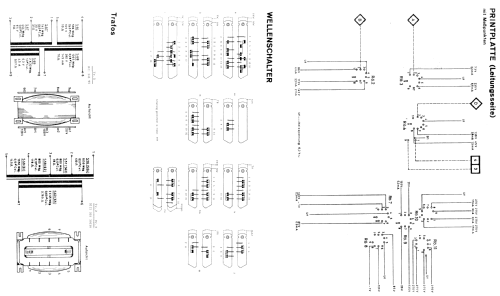

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949349) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949344) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949345) Radio

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 949464) Radio
Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31764) Radio Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31765) Radio
Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31766) Radio Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31767) Radio

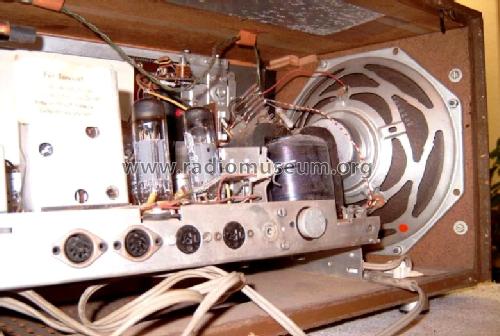

Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31769) Radio Saturn 851 Stereo B8D51A; Philips Radios - (ID = 796398) Radio
Saturn 851 Stereo B8D51A; Philips Radios - (ID = 796399) Radio Saturn 851 Stereo B8D51A; Philips Radios - (ID = 796400) Radio
Saturn 851 Stereo B8D51A; Philips Radios - (ID = 950429) Radio
Use red slider bar for more.
Saturn 851 Stereo B8D51A; Philips Radios - (ID = 31764) Radio
Philips Radios -: Saturn 851 Stereo B8D51A [Radio] ID = 31764 642x241
Select picture or schematic to display from thumbnails on the right and click for download.
For model Saturn 851 Stereo B8D51A, Philips Radios - Deutschland:
ebay

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1966/1967 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EAF801 EF184 EM87 EM87 ECC808 ECC808 ECC83 ELL80 ELL80
Semiconductors (the count is only for transistors) 4:
Principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM.
Details
Power type and voltage Alternating Current supply (AC) / 110-125; 220 Volt
Loudspeaker 2 Loudspeakers / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: Saturn 851 Stereo B8D51A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 730 x 240 x 250 mm / 28.7 x 9.4 x 9.8 inch
Notes Transistoren: 4× AF126; Dioden: 7× AA119.
Stereo-Decoder eingebaut, Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 9 W.
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Collectors' prices
External source of data erb
Source of data Handbuch VDRG 1966/1967
