• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 54917
    • alternative name: RCA Manufacturing || Victor Talking Machine

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 11
  • Main principle
  • Superhet with RF-stage; ZF/IF 455 kHz
  • Wave bands
  • Broadcast plus more than 2 Short Wave bands.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
  • Power out
  • 18 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: V-300 Ch= RC-518 - RCA RCA Victor Co. Inc.; New
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 35.25 x 35 x 18.5 inch / 895 x 889 x 470 mm
  • Notes
  • BC, 3xSW.
  • External source of data
  • Ernst Erb

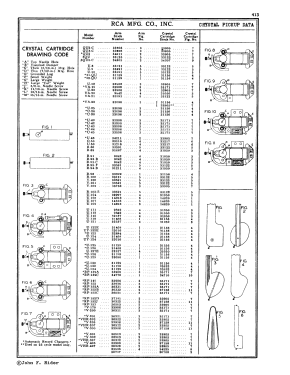

  • Circuit diagram reference
  • Rider's Perpetual, Volume 12 = ca. 1941 and before
