- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 5342

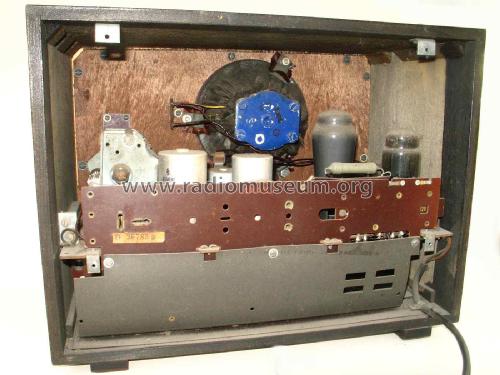

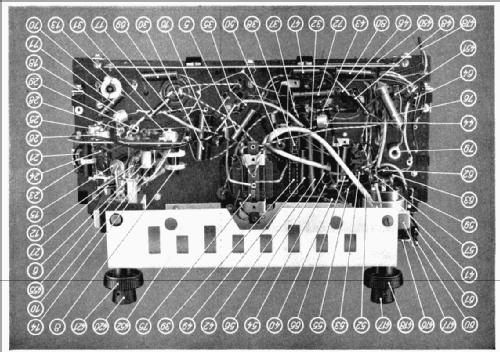

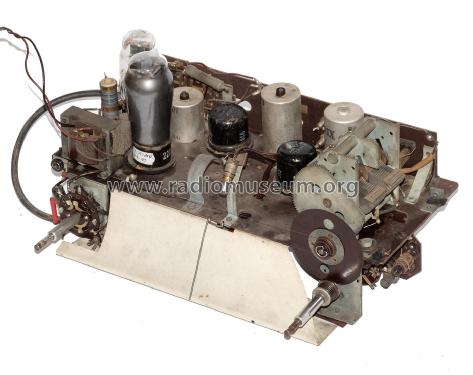

Unrestauriert, im vorgefundenen Zustand.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; Export model
- Tuned circuits
- 5 AM circuit(s)

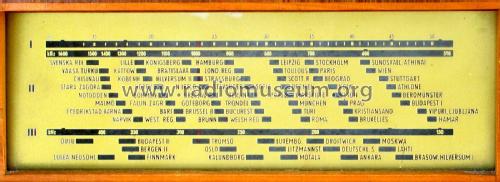

- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- AC/DC-set / 110; 125; 150; 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 12GW - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 370 x 290 x 220 mm / 14.6 x 11.4 x 8.7 inch
- Notes
- Exportgerät (Beschriftung!).
- Net weight (2.2 lb = 1 kg)
- 6.1 kg / 13 lb 7 oz (13.436 lb)
- Source of data
- Radiokatalog Band 1, Ernst Erb

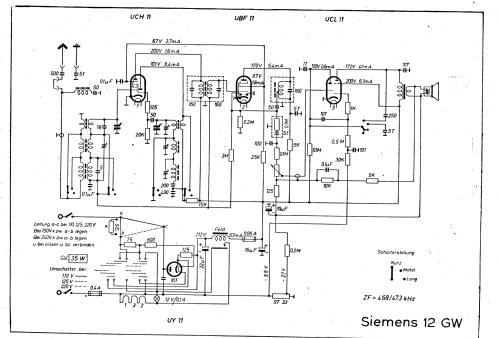

- Circuit diagram reference
- Lange+Schenk+FS-Röhrenbestückung
