• Year
  • 1992 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 164119

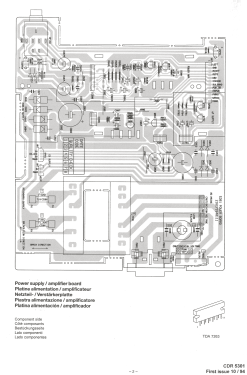

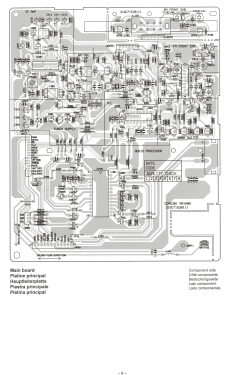

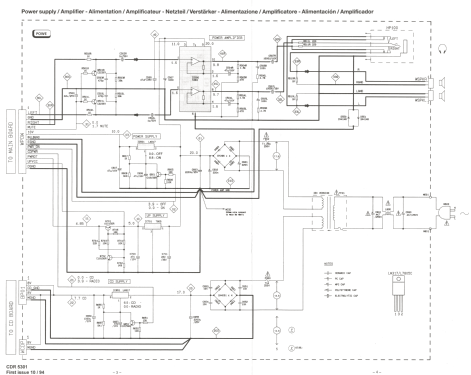

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Alternating Current supply (AC) / 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 6 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Studio 1 - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 435 x 240 x 210 mm / 17.1 x 9.4 x 8.3 inch
  • Notes
  • Stereo CD-Radio, 2 Lautsprecher (6 Ohm) je 3 Watt sinus, Kopfhöreranschluß über Klinkenbuchse 3,5 mm. Produktion in China.
  • Net weight (2.2 lb = 1 kg)
  • 4.4 kg / 9 lb 11.1 oz (9.692 lb)
  • Author
  • Model page created by Museum Roggenhofer. See "Data change" for further contributors.
