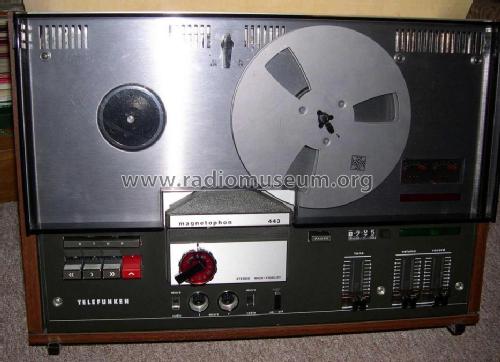

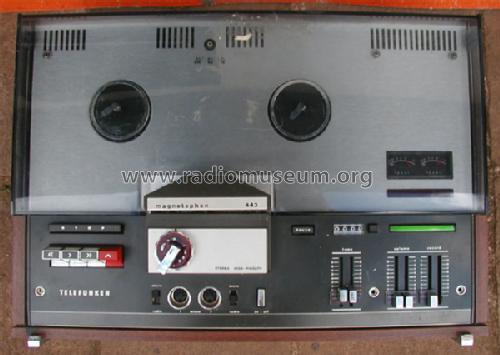

magnetophon 443 hifi
Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Paese
- Germania
- Produttore / Marca
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Anno
- 1973/1974
- Categoria
- Registratore audio/video e/o riproduttore
- Radiomuseum.org ID
- 29209
Clicca sulla miniatura dello schema per richiederlo come documento gratuito.
- Numero di transistor
- 20
- Semiconduttori
- Principio generale
- Amplificatore audio
- Gamme d'onda
- - senza
- Particolarità
- Registratore a nastro
- Tensioni di funzionamento
- Alimentazione a corrente alternata (CA) / 110; 127; 220; 240 Volt
- Altoparlante
- - Questo apparecchio richiede altoparlante/i esterno/i.
- Materiali
- Mobile in legno
- Radiomuseum.org
- Modello: magnetophon 443 hifi - Telefunken Deutschland TFK,
- Forma
- Soprammobile basso, con andamento orizzontale (grosse dimensioni).
- Dimensioni (LxAxP)
- 495 x 345 x 185 mm / 19.5 x 13.6 x 7.3 inch
- Annotazioni
- Vierspur-HiFi-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 19 cm/s: 40-18000 Hz; NF-Verstärker mit 2 Endstufen je 10 W. Horizontal- und Vertikalbetrieb möglich. Stromversorgung auf 117 V/60 Hz umschaltbar.
- Peso netto
- 13.7 kg / 30 lb 2.8 oz (30.176 lb)
- Fonte esterna dei dati
- Erb
- Fonte dei dati
- Katalog RFP 1973
- Altri modelli
-
In questo link sono elencati 3548 modelli, di cui 3128 con immagini e 2095 con schemi.
Elenco delle radio e altri apparecchi della Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Collezioni
Il modello magnetophon fa parte delle collezioni dei seguenti membri.
Discussioni nel forum su questo modello: Telefunken: magnetophon 443 hifi
Argomenti: 1 | Articoli: 3
Hi, I am a new member.
I own a TELEFUNKEN 443 hifi - it was given to me. I needed to refurbish the unit; it now works fine.
A manual did not come with the unit. I would love to have one, though, because it has a feature I have not seen on other tape decks. A PDF would do fine.
By the way, my other tape deck is a SONY TC-355.
Could anyone help?
Rolf Franke
Rolf Franke, 20.Mar.09
