• Country
• Italy

• Manufacturer / Brand
• Trans Continents (Prandoni); Milano, Treviglio

• Year
• 1961/1962

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137596

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 UCH81 UF89 EABC80 DM70 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

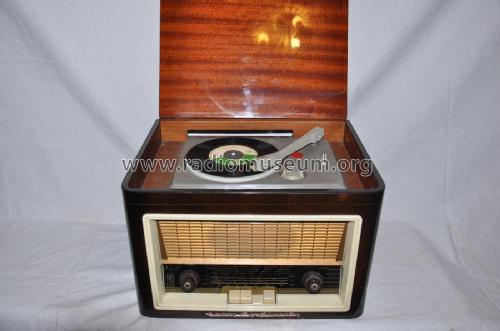

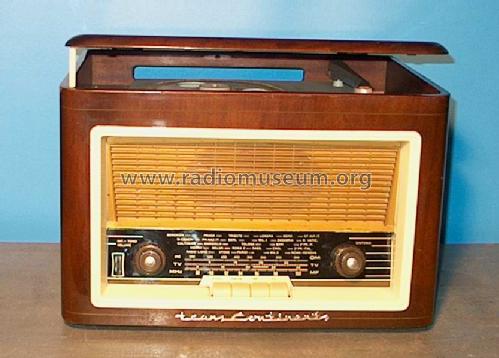

• Model: PD61 - Trans Continents Prandoni;

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 400 x 275 x 320 mm / 15.7 x 10.8 x 12.6 inch

• Source of data
• Guida Pratica Antique Radio IV (2001)

• Author
• Model page created by Federico Valdameri † 7.2015. See "Data change" for further contributors.

• Other Models

• Here you find 132 models, 99 with images and 47 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
