• Country
• Germany

• Manufacturer / Brand
• Wega, Württembergische Radio-Ges. mbH; Stuttgart, Fellbach

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128089

• • alternative name: Württemb. Radio-Ges.mbH; Stuttgart

• Number of Tubes
• 5

• Valves / Tubes
• ECH11 EBF11 ECL11 AZ12 EM11

• Main principle
• Superheterodyne (common); ZF/IF 473 kHz

• Wave bands
• Broadcast, Long Wave and 2 x Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

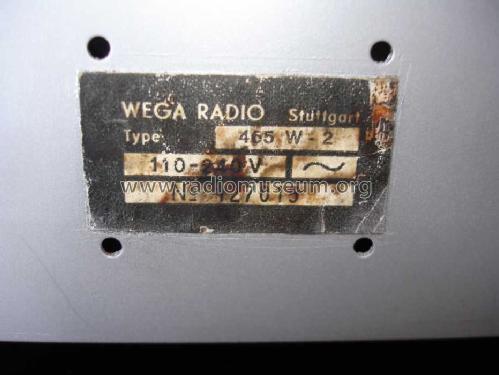

• Model: Samba 465W-2 - Wega, Württembergische Radio-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 425 x 285 x 200 mm / 16.7 x 11.2 x 7.9 inch

• Net weight (2.2 lb = 1 kg)
• 8.6 kg / 18 lb 15.1 oz (18.943 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Carlos Alves. See "Data change" for further contributors.
