6AS7G

Information - Help
ID = 4588

Country:
Worldwide
Brand:
Developer: RCA (RCA Victor Co. Inc.); New York (NY)
Tube type:  Double Triode   Power-supply
Identical to 6AS7G = 6AS7 = 6Н5С = A1834 = A4475 = CV2523 = 6Н13С
Similar Tubes
Other shape (e.g. bulb type):
  6AS7GA
Normally replaceable-slightly different:
  6N13P ; 6N5P
Other class quality (otherwise equal):
  6520
Different maximum ratings:
  6080
Other characteristic (electr. data):
  421A_WE
Heater different:
  6082 ; 6082A
First Source (s)
06.Nov.1945 : - - Manufacturers Literature RCA Data Sheet
10.Jan.1946 : Electron Tube Registration List 463
Successor Tubes 6N22P   6080

Base Octal (Int.Octal, IO) K8A, USA 1935
Filament Vf 6.3 Volts / If 2.5 Ampere / Indirect / Specified voltage AC/DC
Description

Amplification factor µ = 2.

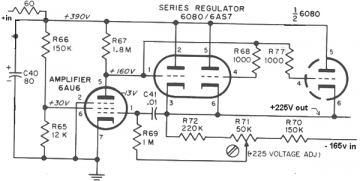

Used as a regulator tube in dc power-supply units, as a booster tube in the scanning circuit of television receivers, and as a push-pull class A output tube in high-fidelity audio amplifiers.


Text in other languages (may differ)
Tube prices 12 Tube prices (visible for members only)
Information source Essential Characteristics, GE 1973
- - Manufacturers Literature   GEC Data sheets Feb 1964

6AS7G: HP VHF Signalgenerator 608D
Heinz Höger
    More ...
6as7_1.png 6AS7G: Datenblatt
Wolfgang Bauer

More ...

Just Qvigstad
6AS7G: Manufacturer's Literature
Emilio Ciardiello

More ...
Usage in Models 3= 1946 ; 1= 1947? ; 9= 1947 ; 2= 1948? ; 17= 1948 ; 3= 1949? ; 5= 1949 ; 1= 1950?? ; 3= 1950? ; 1= 1950 ; 1= 1955?? ; 1= 1955? ; 1= 1957? ; 2= 1960?? ; 1= 2003?

Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):51
