S1A0902X01

Information - Help
ID = 69007

Country:
South Korea
Brand: Common type South Korea tube/semicond.
Tube type:  IC - Integrated Circuit   RF/IF-Stage
Identical to S1A0902X01

Base Wires
Description

Aufbau/Content: IC (LSI);
Form/Case/Outline: DIP-24S (S1A0902X01-xx*) | TSSOP-24;
Applikation/Type: AM/FM Tuner + MPX;
Daten/electr.data: Vcc: 2...7 V; Icc: 11 mA (FM) | 6.5 mA (AM) @ 3 V; Pd: <1.2 W, t op: -20...+75 °C.
*) Industrial Code; commercial = KA22902;
Manufactured by Samsung -


Dimensions (WHD)
incl. pins / tip
30 x 7 x 9 mm / 1.18 x 0.28 x 0.35 inch
Weight 1 g / 0.04 oz
Information source - - Manufacturers Literature

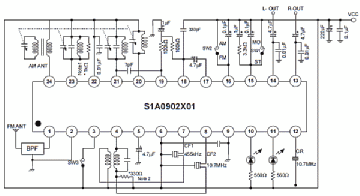

S1A0902X01: Samsung
Günther Stabe † 19.8.20

s1a0902x01_s.png S1A0902X01: Samsung
Günther Stabe † 19.8.20

S1A0902X01: Samsung
Günther Stabe † 19.8.20
