• Year
  • 1962/1963
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 161221

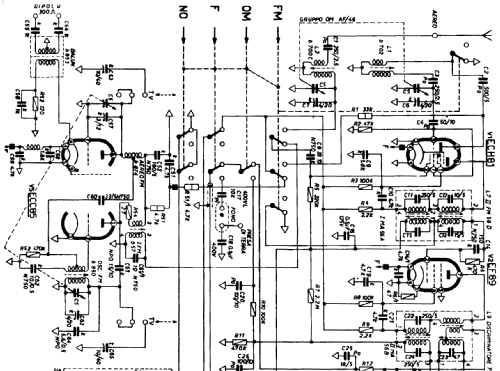

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)     8 FM circuit(s)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Ondina 1080 - Allocchio Bacchini Radialba;
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 550 x 320 x 280 mm / 21.7 x 12.6 x 11 inch
  • Notes
  • Giradischi 4 velocità.

    Vedi anche il modello 460 senza giradischi.
