- Country
- Italy
- Manufacturer / Brand
- Allocchio Bacchini (Radialba); Milano
- Year
- 1955–1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79969
Scala-Dial
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

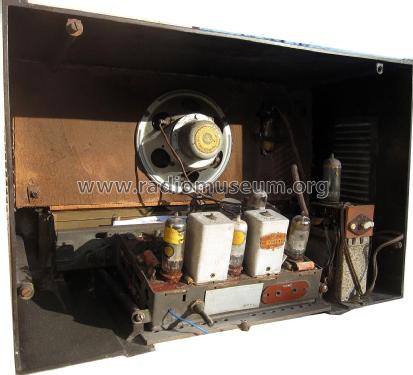

- Model: 553 - Allocchio Bacchini Radialba;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 420 x 275 x 230 mm / 16.5 x 10.8 x 9.1 inch
- Notes
- Serie ANIE.
Sul Catalogo ANIE 1955-56 e 1956-57 viene indicato il seguente elenco valvole (differente dallo schema): 6AJ8 6BA6 6AT6 6AQ5 EM80 6X4
- Net weight (2.2 lb = 1 kg)
- 5.2 kg / 11 lb 7.3 oz (11.454 lb)
- Price in first year of sale
- 29,000.00 ITL
- Source of data
- Guida Pratica Antique Radio (1) 1999
- Mentioned in
- Catalogo ANIE (1955-56 e 1956-57)
- Author
- Model page created by Riccardo Landi. See "Data change" for further contributors.
