AT-Super 660Wk3 ECH81 EM11

AT-Super 660Wk3; EAW, Elektro- (ID = 137072) Radio

AT-Super 660Wk3; EAW, Elektro- (ID = 397480) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 125660) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 125661) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 125662) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 148677) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 148678) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 148679) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 827103) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 827104) Radio
AT-Super 660Wk3; EAW, Elektro- (ID = 827105) Radio AT-Super 660Wk3; EAW, Elektro- (ID = 1073527) Radio
Use red slider bar for more.
AT-Super 660Wk3; EAW, Elektro- (ID = 125660) Radio
EAW, Elektro-: AT-Super 660Wk3 [Radio] ID = 125660 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model AT-Super 660Wk3 ECH81 EM11, EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)

Country:  Germany
Manufacturer / Brand:  EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)
alternative name

AEG Treptow (AT, EAT); Berlin || EAT (El.-App. Treptow)
Brand
AT Apparatewerk Treptow
Year: 1954/1955 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF11 EF11 EL11 EM11 AZ11 or
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Principle Super-Heterodyne (Super in general); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: AT-Super 660Wk3 [ECH81 EM11] - EAW, Elektro-Apparate-Werke,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 410 x 275 mm / 22.8 x 16.1 x 10.8 inch
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Price in first year of sale 432.00 Mark
Collectors' prices
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

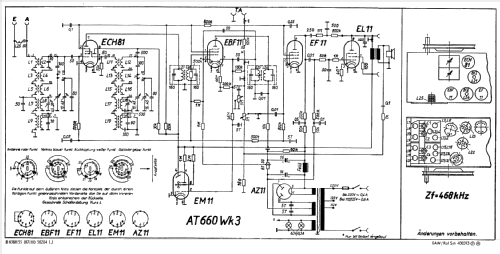

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Hannes Wurnitsch. See "Data change" for further contributors.

All listed radios etc. from EAW, Elektro-Apparate-Werke, VEB; (ex AEG Treptow), Berlin-Treptow (Ostd.)
Here you find 63 models, 53 with images and 31 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
