• Country
• Germany

• Manufacturer / Brand
• Graetz, Altena (Westfalen)

• Year
• 1953–1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 19959

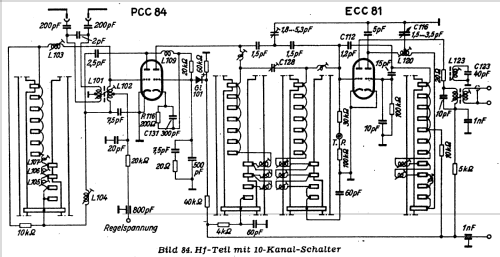

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 18

• Valves / Tubes
• PCC84 ECC81 EF80 EF80 EF80 EB41 PL83 EF80 EQ80 PL83 ECL80 ECC82 PL82 ECC82 PL81 PY80 EY51 MW43-43

• Main principle
• Superheterodyne (common); ZF/IF 29000 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Fernseh-Standgerät F10 [Serie] - Graetz, Altena Westfalen

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 650 x 950 x 550 mm / 25.6 x 37.4 x 21.7 inch

• Notes
• 10 VHF-Kanäle + 2 Reserve. Ausführung wie F8, jedoch als Standgerät mit 2 LS.

• Net weight (2.2 lb = 1 kg)
• 45 kg / 99 lb 1.9 oz (99.119 lb)

• Price in first year of sale
• 1,398.00 DM

• External source of data
• Erb

• Source of data
• Kat.d.Rundf.GrossH.1953/54
