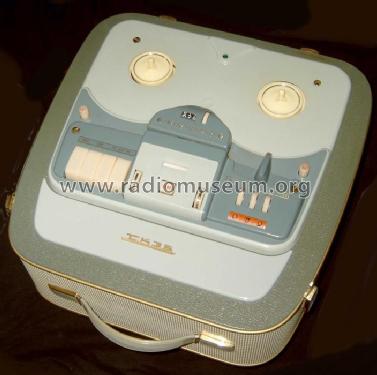

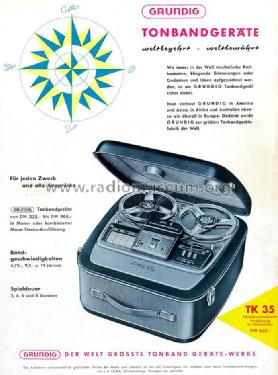

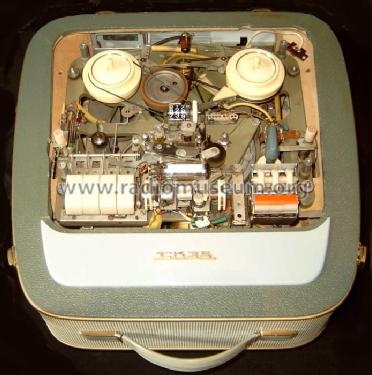

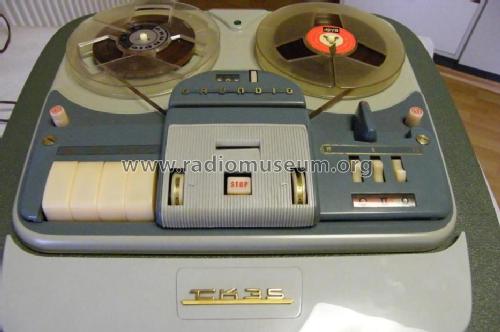

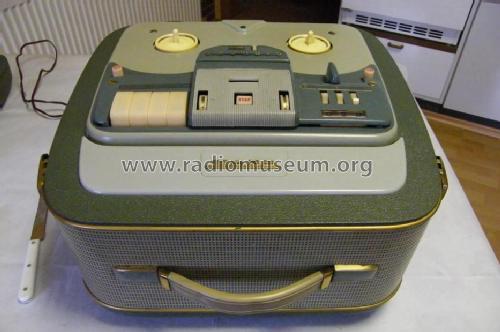

TK35

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke)

• Year
• 1958–1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22039

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC81 EL95 EL84 EM84

• Number of Transistors

• Semiconductors
• E25C5 B250C100 B30C600

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage

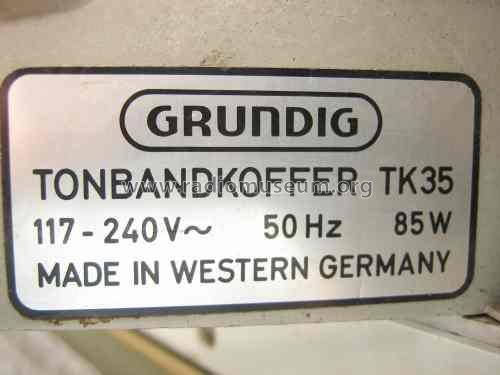

• Alternating Current supply (AC) / 117; 150; 200; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: TK35 - Grundig Radio-Vertrieb, RVF,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 460 x 230 x 420 mm / 18.1 x 9.1 x 16.5 inch

• Notes
• Zweispur; 4,75/9,5/19 cm/s. Spulen-Ø 18 cm.
  Gehäuse: Unten Holzgehäuse bezogen, oben PVC.

• Net weight (2.2 lb = 1 kg)
• 15.5 kg / 34 lb 2.3 oz (34.141 lb)

• Price in first year of sale
• 659.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
