243W; Mende - Radio H. (ID = 107022) Radio

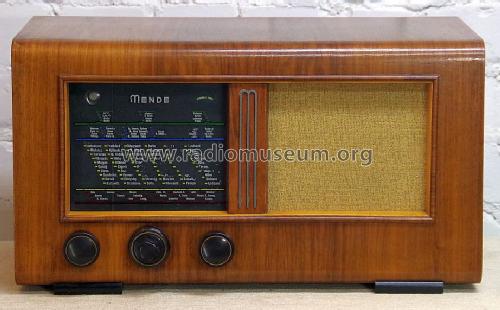

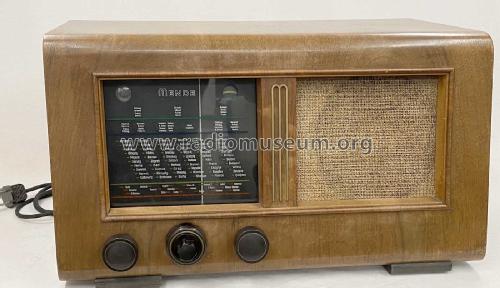

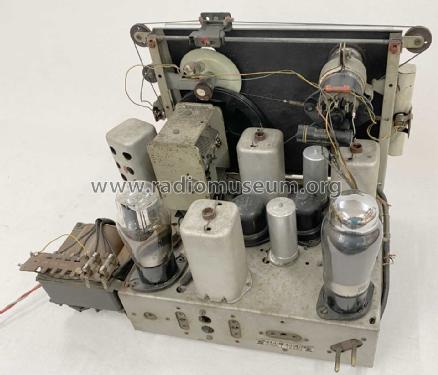

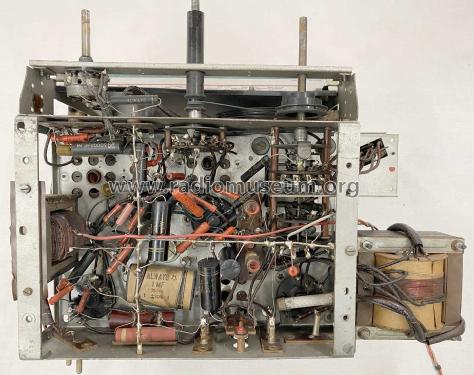

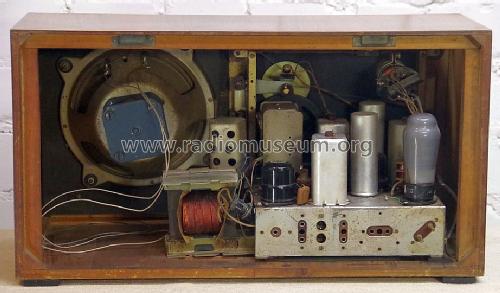

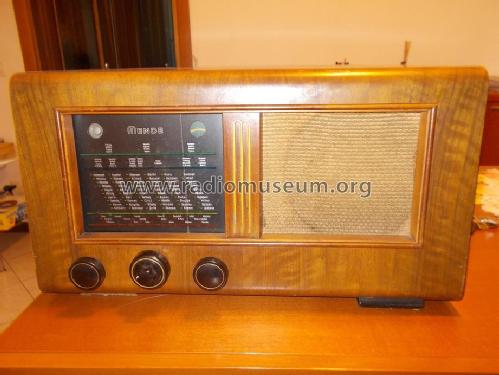

Mende - Radio H.: 243W [Radio] ID = 107022 740x460
Select picture or schematic to display from thumbnails on the right and click for download.
For model 243W, Mende - Radio H. Mende & Co. GmbH, Dresden:
This is a Mende, and the type is MS243W. And I think it is the same as the (Model ID = 3651)

Country:  Germany
Manufacturer / Brand:  Mende - Radio H. Mende & Co. GmbH, Dresden
Brand

System Günther
Year: 1941–1943 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Super-Heterodyne (Super in general); ZF/IF 484 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 105-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 243W - Mende - Radio H. Mende & Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 555 x 305 x 260 mm / 21.9 x 12 x 10.2 inch
Notes variable Bandbreite.
Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
