Linz W69; Nora; Berlin (ID = 3496) Radio

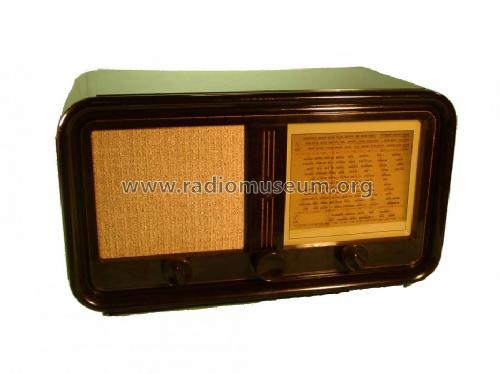

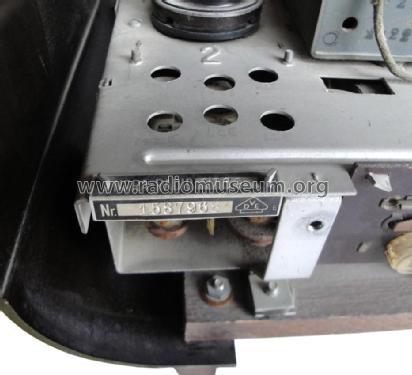

Nora; Berlin: Linz W69 [Radio] ID = 3496 638x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model Linz W69, Nora; Berlin

Country:  Germany
Manufacturer / Brand:  Nora; Berlin
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH11 EBF11 ECL11 AZ11
Main principle Super-Heterodyne (Super in general); ZF/IF 468 or 473 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Linz W69 - Nora; Berlin
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 550 x 300 x 260 mm / 21.7 x 11.8 x 10.2 inch
Notes var.BBr.
Net weight (2.2 lb = 1 kg) 14.5 kg / 31 lb 15 oz (31.938 lb)
Price in first year of sale 193.00 RM
Collectors' prices
Source of data Katalog Eltax, Berlin, 1939/40 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
