• Country
• Germany

• Manufacturer / Brand
• Nordmende, Norddeutsche Mende-Rundfunk GmbH (Sterling), Bremen-Hemelingen

• Year
• 1953/1954

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 19978

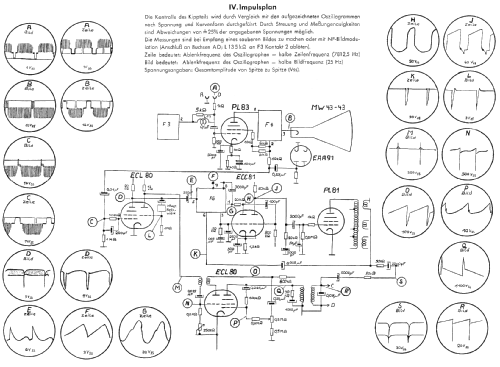

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 17

• Valves / Tubes
• PCC84 ECC81 EF80 EF80 EF80 PL83 EF80 PABC80 PL82 EAA91 ECL80 ECL80 ECC81 PL81 PY81 EY51 MW43-64

• Main principle
• Superheterodyne (common); ZF/IF 26000/5500 kHz; 2 AF stage(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Favorit 54 Ch= 370 - Nordmende, Norddeutsche Mende-

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 570 x 950 x 475 mm / 22.4 x 37.4 x 18.7 inch

• Notes
• 10 TV-Kanäle im VHF-Bereich + 2 Reserve. Bildröhre auch MW43-43 (Metallkonus).

• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,295.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1953/54

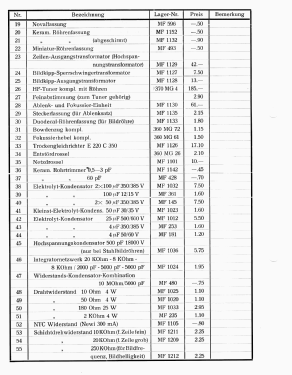

• Literature/Schematics (1)
• -- Original-techn. papers.
