• Year
  • 1936/1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 26889

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superhet with RF-stage; ZF/IF 475 kHz
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

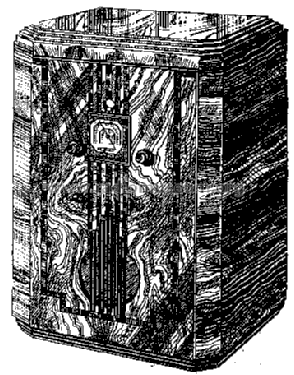

  • Model: Ballade 380A - Philips; Eindhoven tubes
  • Shape
  • Console with any shape - in general
  • Dimensions (WHD)
  • 700 x 1060 x 400 mm / 27.6 x 41.7 x 15.7 inch
  • Notes
  •
  • Price in first year of sale
  • 385.00 FL
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.
