For model "Legionario" 751M, Philips Italy; Milano (MI):
751M

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1936/1937 Type: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL4 AZ1
Principle Super-Heterodyne (Super in general); ZF/IF 115 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: "Legionario" 751M - Philips Italy; Milano MI
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 345 x 200 mm / 16.5 x 13.6 x 7.9 inch
Notes

Similar model by Philips NL: Matador V6A.

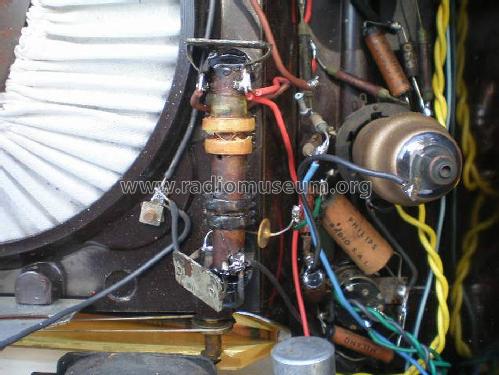

Nuovo sistema di costruzione senza chassis.

Price in first year of sale 875.00 ITL
Collectors' prices
Source of data Guida Pratica Antique Radio II
Literature/Schematics (1) Il Radiolibro, 5.Ed.,300 Schemi

Model page created by Alessandro De Poi. See "Data change" for further contributors.
