Philetta 203U-14

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 23203

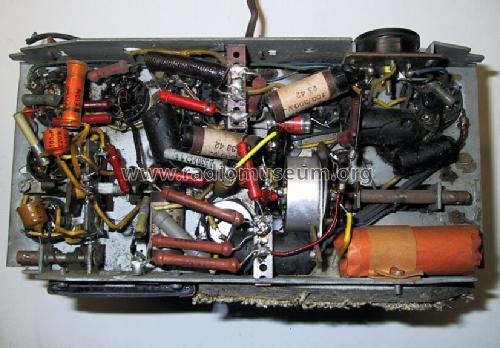

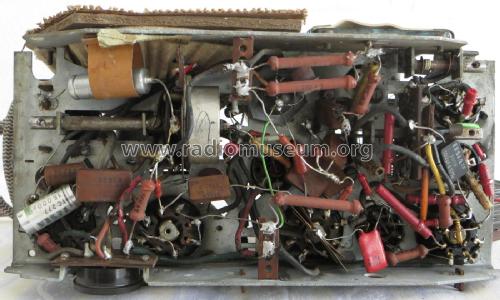

• Picture

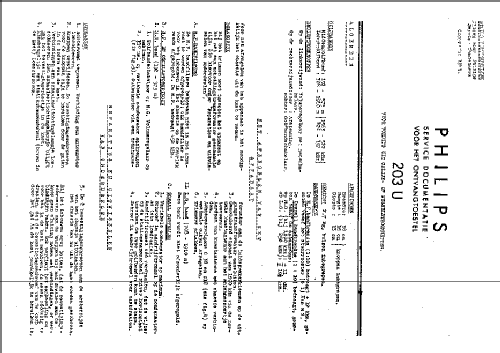

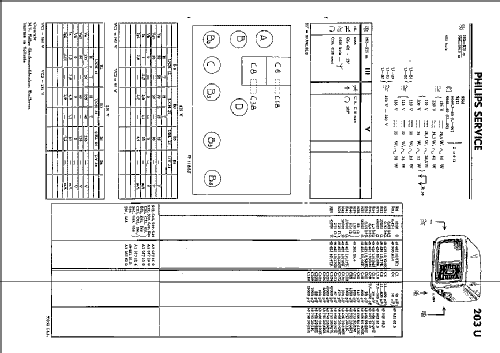

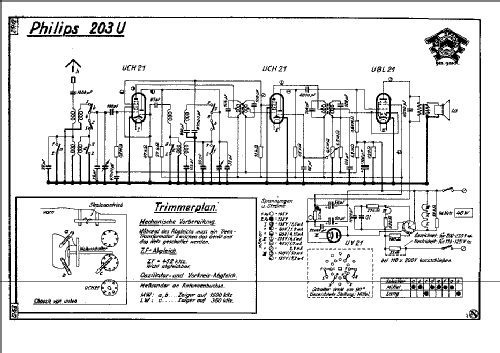

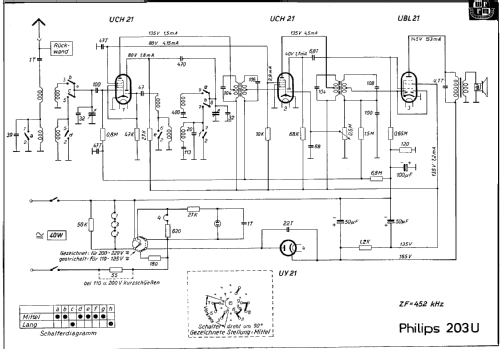

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N or UY21

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110/125/200/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch

• Power out
• 1.8 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Philetta 203U-14 - Philips akc. spol., Praha-

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 280 x 160 x 130 mm / 11 x 6.3 x 5.1 inch

• Notes
• Loudspeaker output at 125V DC 0,6W only.

• External source of data
• Erb

• Source of data
• Ceskoslovenske prijimace 1933-1945, Baudys 1947

• Mentioned in
• Ceskoslovenske prijimace 1933-1945, Baudys 1947
