UY1N

Information - Help
ID = 288

Country:
Europe
Brand: Common type Europe tube/semicond.
Tube type:  Half-Wave Vacuum Rectifier
Identical to UY1N = UY1(N)
Similar Tubes
Different maximum ratings:
  UY1NS
Different connections:
  UY1 ; UY31
Other base:
  UY11 ; UY21 ; UY3
First year 1941 Tube leaflet collection E.Erb Analysis by original leaflets (P11)
First Source (s)
Jan.1940 : Daten und Schaltungen moderner ... Röhren; Philips # 3
Predecessor Tubes UY1
Successor Tubes 1941   UY3   UY21   UY41   UY82
Base Octal (Int.Octal, IO) K8A, USA 1935 (Codex=Wk)
Filament Vf 50 Volts / If 0.1 Ampere / Indirect / Specified current AC/DC ~ = (Series working)
Description Hat im Unterschied zu UY1 Drahtbrücken im Sockel, sonst wie UY1.
Tube prices 38 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

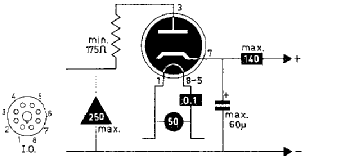

UY1N: Courtesy Bureau Belper (De Muiderkring, Bussum), Scan Frank Philipse
Karel De Reus †     More ...
uy1n_so.png UY1N: rtt
Anonymous 10 Collector
More ...
Just Qvigstad 		uy1n_techdat1.png
UY1N: Original Data Sheet
Hermann Fleischanderl
More ...
Usage in Models 5= 1941?? ; 7= 1941? ; 30= 1941 ; 4= 1942?? ; 4= 1942? ; 23= 1942 ; 5= 1943?? ; 12= 1943? ; 25= 1943 ; 1= 1944?? ; 4= 1944? ; 38= 1944 ; 2= 1945?? ; 3= 1945? ; 44= 1945 ; 5= 1946?? ; 12= 1946? ; 30= 1946 ; 4= 1947?? ; 10= 1947? ; 51= 1947 ; 11= 1948?? ; 23= 1948? ; 73= 1948 ; 4= 1949?? ; 19= 1949? ; 63= 1949 ; 8= 1950?? ; 7= 1950? ; 20= 1950 ; 2= 1951?? ; 13= 1951? ; 21= 1951 ; 3= 1952?? ; 4= 1952? ; 25= 1952 ; 3= 1953?? ; 6= 1953? ; 5= 1953 ; 1= 1954?? ; 3= 1954? ; 6= 1954 ; 6= 1955?? ; 4= 1955? ; 2= 1955 ; 1= 1956?? ; 3= 1956 ; 2= 1957? ; 7= 1957 ; 1= 1958 ; 1= 1959 ; 1= 9999?? ; 1= 9999
Quantity of Models at Radiomuseum.org with this tube (valve, valves, valvola, valvole, válvula, lampe):668
