• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1958/1959

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22023

• • Brand: Deutsche Philips-Ges.

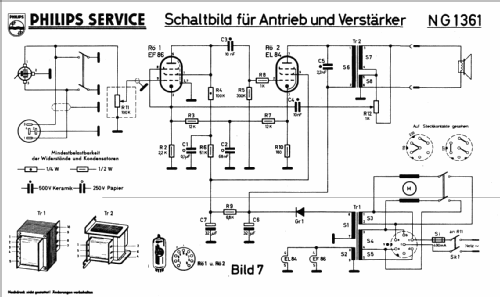

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EF86 EL84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch

• Power out
• 3 W (unknown quality)

• from Radiomuseum.org

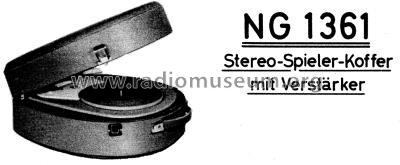

• Model: Phonokoffer SK80 NG1361 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 170 x 370 mm / 14.2 x 6.7 x 14.6 inch

• Notes
• 4 Geschwindigkeiten; Kristall-System, 30-15000 Hz.

• Net weight (2.2 lb = 1 kg)
• 6.5 kg / 14 lb 5.1 oz (14.317 lb)

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1958/59
