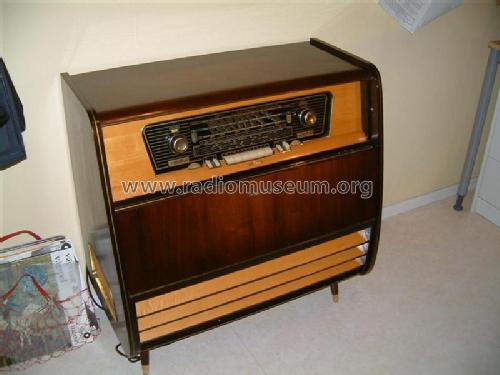

Goldtruhe Balalaika 7046 Philips

Schaub und Schaub-Lorenz

  • Year
  • 1956/1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 6033

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110;127; 150; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Goldtruhe Balalaika 7046 [Philips] - Schaub und Schaub-Lorenz
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 770 x 790 x 410 mm / 30.3 x 31.1 x 16.1 inch
  • Notes
  • Rundfunk-Chassis = Goldsuper W32;
    Phono-Chassis = Philips AG1003.
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Price in first year of sale
  • 699.00 DM
  • Picture reference

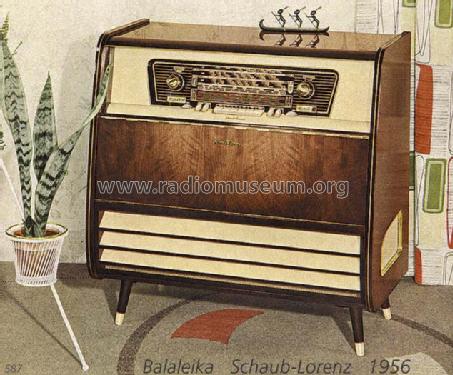

  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
