• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 95595

• • alternative name: Fernsehgerätewerk Staßfurt

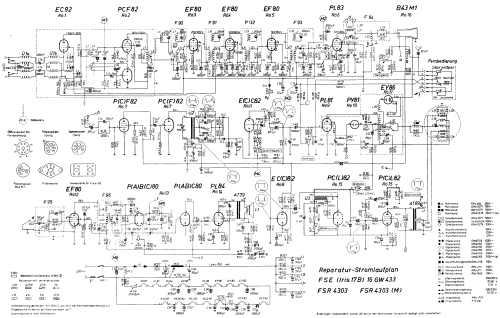

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• EC92 PCF82 EF80 EF80 EF80 PL83 EF80 PABC80 PL84 ECC82 PCL82 PCF82 PL81 PY81 EY86 B43M1

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Iris 17B 16GW433 - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 470 x 455 mm / 21.3 x 18.5 x 17.9 inch

• Notes
• 43-cm-TV mit VHF-Tuner Band I/III nach CCIR B.
  Verbesserungen zum A-Typ in der Kontrastregelung und Nachbarkanalselektion.
  Fernbedienungsanschluss.
  Chassis auch in Fernsehmusikschrank FSR 4303 eingesetzt.

• Net weight (2.2 lb = 1 kg)
• 33.5 kg / 73 lb 12.6 oz (73.789 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
