Diamant II 8E158 I (8 E 158 1)

• Country
• Germany

• Manufacturer / Brand
• Stern-Radio Staßfurt, VEB, RFT (Ostd.) - vorm. Staßfurter (Stassfurter)...

• Year
• 1958/1959

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62802

• • alternative name: Fernsehgerätewerk Staßfurt

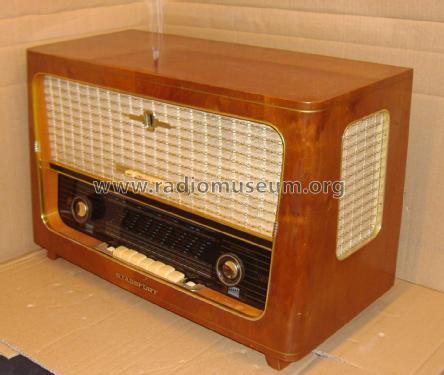

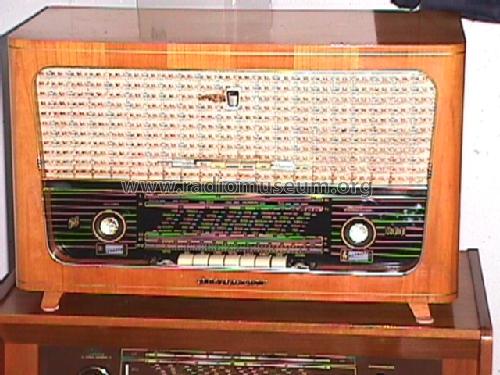

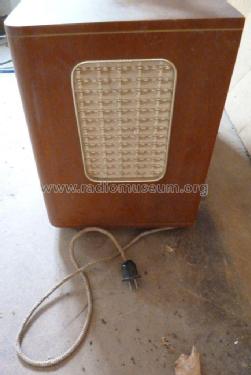

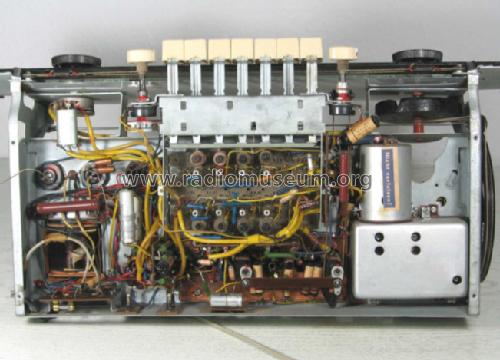

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EC92 EC92 ECH81 EF89 EM80 EABC80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/6700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110, 127, 220, 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Diamant II 8E158 I - Stern-Radio Staßfurt, VEB, RFT

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 630 x 405 x 304 mm / 24.8 x 15.9 x 12 inch

• Notes
• 5 Klangreg. , neue Gehäusevariante.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Price in first year of sale
• 575.00 DM

• Source of data
• -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Die Geschichte der Rundfunkindustrie der DDR Band 1 1945 - 1967 (Radio und Fernsehen 8/59)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Reuther. See "Data change" for further contributors.
