• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81239

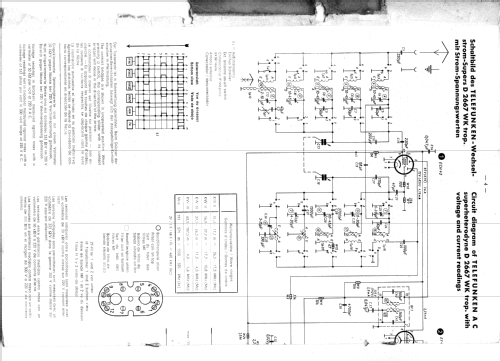

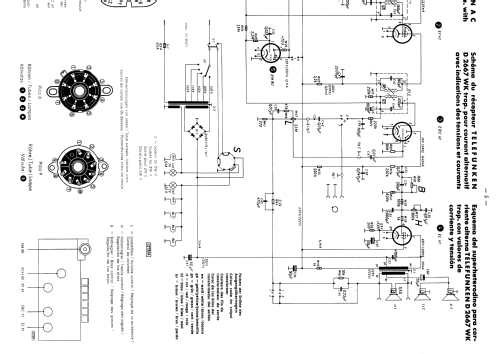

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ECH42 EF41 EBC41 EL41 EM81 or EM80

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz; Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 100; 118; 150; 200; 230 / 6 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: D2667WK trop - Telefunken Deutschland TFK,

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 565 x 360 x 240 mm / 22.2 x 14.2 x 9.4 inch

• Notes

• D2667WK trop (D 2667 WK trop) ist ein Exportmodell.
  Rückwand enthält Text "HI-FI-SYSTEM" und "MADE IN WESTERN GERMANY".
  Bereiche/Gammes:
  MW/PO: 525 - 1550 kHz
  KW 1/OC 1: 17.5 - 26.5 MHz
  KW 2/OC 2: 10.8 - 17.7 MHz
  KW 3/OC 3: 4.5 - 11 MHz
  KW 4/OC 4: 1.6 - 4.8 MHz.
  Lautsprecher/HP: 1x elliptisch, 24 x 14 cm; 2x Hochton 11 cm.

  Dieses Modell ist mit dem Stromversorgungsteil ZW II (Zerhacker) auch für den Betrieb an einer 6 V Auto-Batterie geeignet.

  ---

  This receiver is also suitable for operation from a 6 V car battery in conjunction with the Power Supply Unit ZW II (Vibrapack)

• Net weight (2.2 lb = 1 kg)
• 9.4 kg / 20 lb 11.3 oz (20.705 lb)

• External source of data
• Steve Rosenfeld

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
